Process elements for manufacturing nail finned pipes

In the chemical and petroleum industries, nail head pipes are mainly used in the convection chamber of the heating furnace, which plays a role in improving the overall heat transfer coefficient on the flue gas side. Therefore, the area of ​​nail head pipes is much higher than that of light pipes. After the equipment uses nail head pipes, if the design is reasonable, it can effectively obtain equal heat intensity and radiation.

Many equipment uses resistance welding for the welding method of nail finned pipes. The entire welding process is mainly controlled by the PLC program. The motors for indexing and feeding often use brake motors. The number of nail head pipes can be directly designed on the human-machine interface, and the compensation and indexing parameters can also be set. It is mainly set according to the production process, which effectively improves the accuracy of nail head pipes and the quality of products.

The technology of nail finned pipe also has special performance, and the size of specifications can be adjusted appropriately according to the requirements of users; in terms of welding technology, there is basically no convex weld meat at the root of the nail head tube, which reflects the technical characteristics of nodule welding and also indicates that the material of the nail head tube is relatively high quality; the welding efficiency is unmatched by many other fin tubes, and more than 30 nail head tubes can be welded in one minute; the selected welding machine does not require high power, as long as the single-phase input of the power grid and voltage is normal.

In fact, nail fin tubes are still very important components in the heat exchange and chemical equipment industries. Whether it is daily production or regular maintenance, nail head tubes are indispensable, and the nodule welding process has laid a stable and good development direction in the industry, so it is also more prominent in terms of application prospects.

No matter which industry or equipment uses nail fin tubes, don’t just because of its own high-quality performance, and don’t do daily inspections on it. Regular maintenance work should be completed by professional personnel. If necessary, corresponding records can be made to save time for future fault finding, and also to improve the economic benefits of enterprises that choose nail head tubes.

Here is the precise technical of the Nail Finned Pipe content:

️ I. Structure & Manufacturing Process

1. ‌Fin Morphology‌

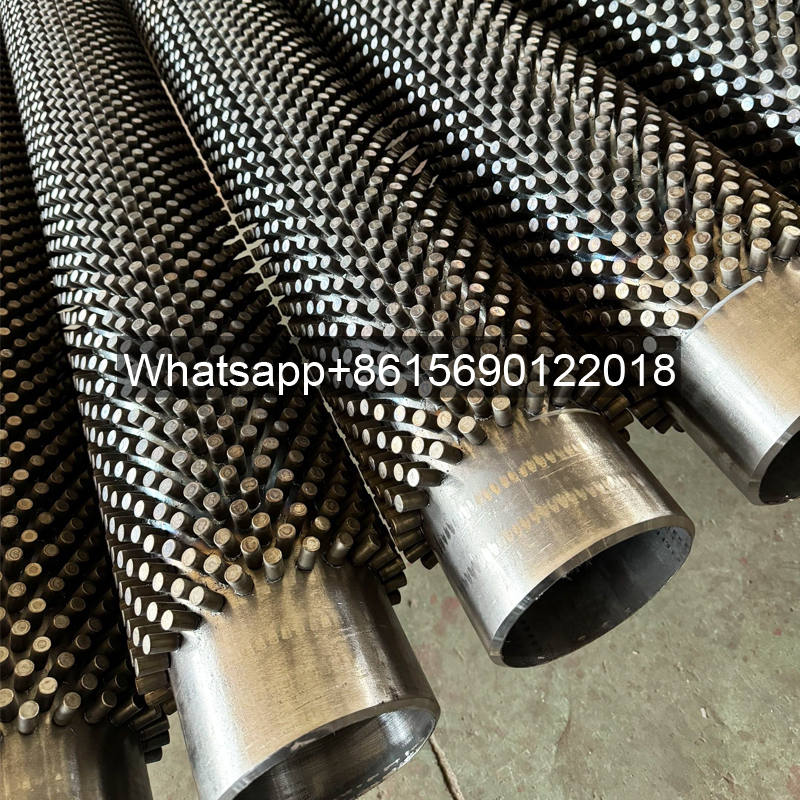

   Cylindrical or conical nail-shaped protrusions (typically 10–30mm high) are uniformly distributed on the base tube (carbon steel, stainless steel, etc.) surface. Integrated structures are formed via high-frequency welding, pressing, or machining. Fin density can reach 1,000–1,500 fins/meter, significantly increasing the effective heat transfer area (3–8 times that of a bare tube)‌23.

2. ‌Material Compatibility‌

   • ‌Base Tube‌: Seamless steel pipe (common materials: carbon steel, alloy steel, or stainless steel), diameter range: 1–15.75 inches (25–400mm)‌.
   • ‌Fin Material‌: Typically matches the base tube material, or utilizes SS (stainless steel)/CS (carbon steel) to suit corrosive environments‌.

🔥 II. Core Performance Advantages

1. ‌Enhanced Heat Transfer & Anti-Fouling‌
   • The nail structure induces strong turbulence, disrupting the thermal boundary layer and improving the convective heat transfer coefficient‌.
   • Comparative tests show: In industrial flue gas waste heat recovery, the particle deposition rate on Nail Finned Tubes (NFT) is only ‌5.5%‌, significantly lower than Serrated Fin Tubes (SFT, 27.4%) and Annular Fin Tubes (AFT).
2. ‌Mechanical Strength & Reliability‌
   Fins are metallurgically bonded or mechanically embedded (e.g., KL-Type Embedded Fin Tubes) to the base tube, withstanding high pressure (up to 30MPa in boilers) and thermal stress shock‌.

III. Typical Application Scenarios

📊 IV. Technical Parameter Selection Reference

1. ‌Fin Parameters‌
   • Height: 10–30mm
   • Diameter: 3.5–15mm
   • Density: 1,000–1,500 fins/meter‌.
2. ‌Operational Adaptability‌
   • Max. Temp. Resistance: ≤650°C (carbon steel base)
   • Suitable Flow Velocity: 0.5–15m/s (lower range preferred for high dust concentrations).

⚡ V. Performance Enhancement Strategies

1. ‌Structural Innovation‌
   Hybrid fin designs (e.g., nail + helical) synergistically enhance heat transfer and self-cleaning capability‌.
2. ‌Surface Treatment‌
   Aluminizing or ceramic coatings improve resistance to high-temperature oxidation and corrosion.

Nail Finned Tubes, distinguished by their exceptional anti-fouling properties, are the preferred solution for waste heat recovery systems handling high-dust flue gases. Ongoing technological advancements focus on enhancing reliability under extreme conditions and optimizing lifecycle costs‌.
