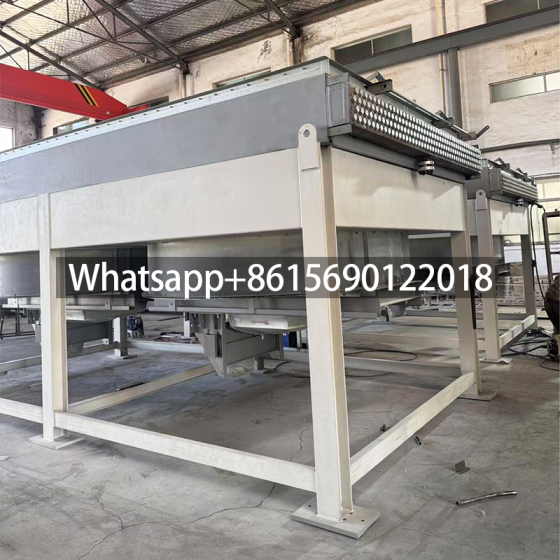

Air Fin Cooler in Refinery/Air Cooled Fin Fan Heat Exchanger
General Description
Industrial Air Cooled Heat Exchanger For Air To Air is a heat exchanger with fin tubes, and it can direct cool the medium by air without water.
And forced draft & induced draft are the most common ventilation types.
Working Principle

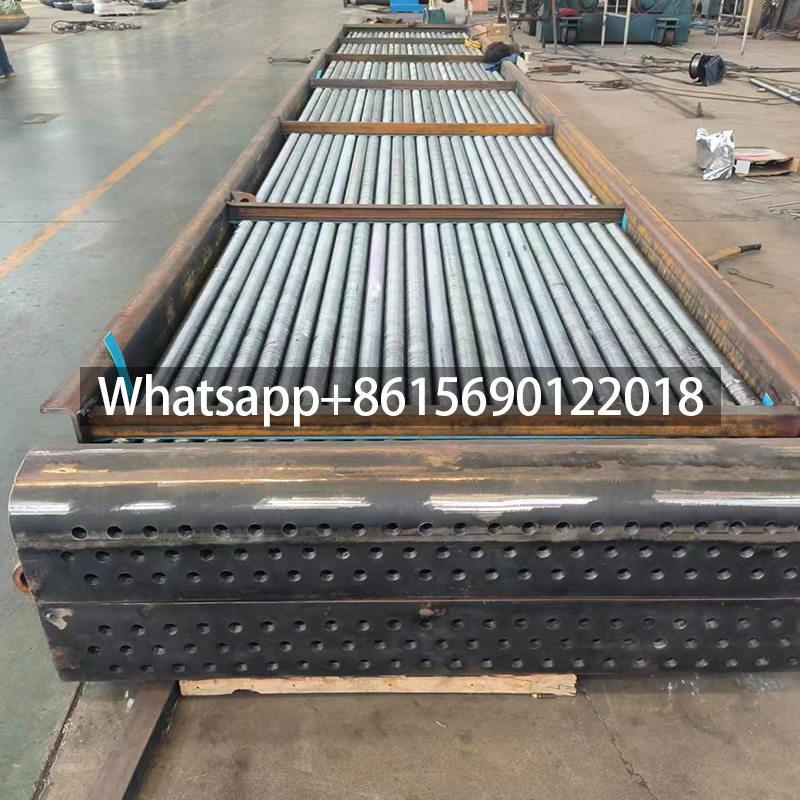

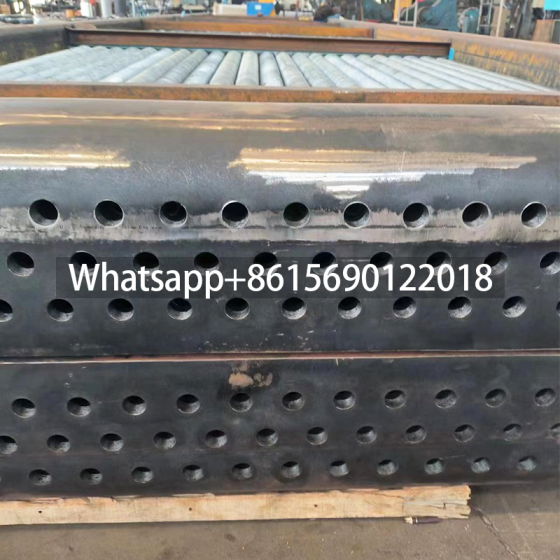

Finned tube bundle, screw tube header, louver and fan are main parts.
Air Fin Cooler in Refinery TECHNICAL SPECIFICATIONS
|
Part Models
|
Tubes QTY
|
Pressure
(MPa) |
Tube bank
QTY |
Bare tube heat transfer area(m2)
|
Finned tube heat transfer area(m2)
|
|
GP12x3-4-172-1.6S-23.4/L(DR)-Ia
|
182
|
1.6
|
4 |
172
|
4025
|
|
GP12x3-4-172-2.5S-23.4/L(DR)-Ia
|
2.5
|
||||
|
GP12x3-4-172-4.0S-23.4/L(DR)-Ia
|
4.0
|
||||
|
GP12x3-8-344-4.0S-23.4/L(DR)-Ia
|
364
|
4.0
|
8
|
344
|
8050
|
|
GP9x2-6-126-1.6S-23.4/L(DR)-Ia
|
177
|
1.6
|
6
|
126
|
2948
|
|
GP6x1-8-52.2-4.0S-23.4/L(DR)-Ia
|
108
|
4.0
|
8
|
52.2
|
1221
|
Above models are just for your reference, and you can contact us for more details.
Air Cooled Fin Fan Heat Exchanger APPLICATIONS
Dry cooled heat exchanger can be widely used in different industrial fields for heat transfer processes, such as: chemical, oil &
gas, power generation…
It is widely used in the desert oil industry air cooling system.
FAQ
1, Fluid material and percentage(if mixture).
2, Fluid flow rate.
3, Fluid temperature(inlet & outlet)
4, Fluid pressure(inlet)
5, Ambient dry-bulb temperature
6, Installation area(if required)
1, Fluid material and percentage(if mixture).
2, Fluid flow rate.
3, Fluid temperature(inlet & outlet)
4, Fluid pressure(inlet)
5, Ambient dry-bulb temperature
6, Installation area(if required)
Bobine de tub cu aripioare
Finned Tube Coils We can supply Finned Tube Coils for either new installations or as made to measure replacements for existing
damaged coils. Our extensive range of Finned Tube Coils are designed for industrial, process and HVAC applications. Finned tube
coils transfer heat energy from a steam or liquid (through the tubes) into air (through the finned area) or vice versa.
damaged coils. Our extensive range of Finned Tube Coils are designed for industrial, process and HVAC applications. Finned tube
coils transfer heat energy from a steam or liquid (through the tubes) into air (through the finned area) or vice versa.
Air Heating & Cooling
We have developed specific ranges of Water to Air Heaters & Coolers for the following applications:
All kinds heat exchanger
