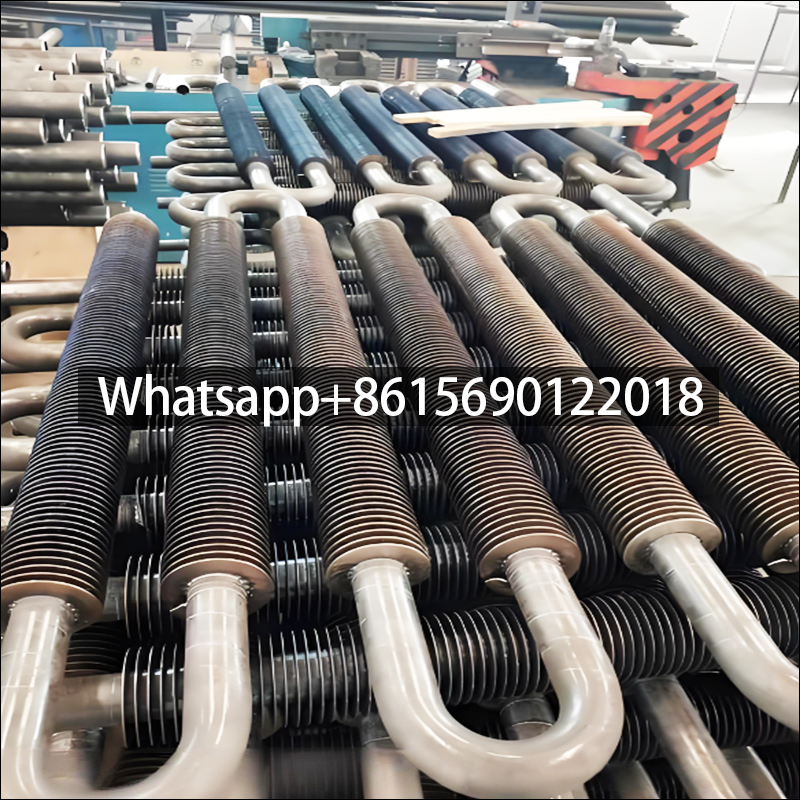

U Bend Fin Tube, also known as U Bend Serpentine High Frequency Welded Spiral Fin Tube, is a new type of high-efficiency heat transfer element. It is made of a coil bent into a spiral shape, has a high heat transfer efficiency, and is mainly used in high-temperature heat energy conversion with water as the heat transfer medium.

The design of U Bend Serpentine Fin Tubes makes it widely used in aerospace, petroleum, chemical industry, food and other fields.

Features and advantages of U Bend Serpentine Fin Tubes

‌High-efficiency heat transfer‌: The serpentine structure increases the length of the pipe and the flow path of the heat medium in the pipe, thereby extending the heat exchange time and significantly improving the heat transfer efficiency.

‌Strong adaptability‌: The serpentine structure can adapt to various irregular or limited spaces, be flexibly arranged, and make full use of space resources.

‌High-frequency welding process‌: The high-frequency welding process is used to ensure that the fins and the base tube are firmly welded, reduce thermal resistance, and make heat transfer smoother.

‌Strong durability‌: The base tube and fins are usually made of high-quality metal materials with good strength and corrosion resistance, suitable for complex working environments‌.

‌Easy installation and maintenance‌: The design is compact, takes up little space, and is easy to install and maintain‌.

U Bend Fin Tube Application Scenarios

Serpentine fin tubes are widely used in various scenarios that require efficient heat dissipation, including:

‌Industrial equipment‌: Used in industrial equipment for efficient heat dissipation to ensure stable operation of the equipment.

‌Greenhouses‌: Combined with heating and ventilation systems, heating in winter and heat dissipation in summer, keeping the temperature inside the greenhouse stable, while saving energy and protecting the environment‌.

U Bend Fin Tubes: Advanced Heat Exchange Solutions

U bend fin tubes represent a significant advancement in heat exchanger technology, offering superior thermal performance through innovative design and manufacturing techniques. These specialized tubes feature a unique U-shaped configuration with integrated fins that dramatically increase heat transfer surface area while maintaining structural integrity through high-frequency welding processes.

Structural Characteristics

The U bend fin tube’s distinctive features include:

• Serpentine Configuration: Allows for compact installation and enhanced fluid turbulence
• High-Frequency Welded Fins: Creates metallurgical bonds between fins and base tubes for optimal heat conduction
• Customizable Geometry: Adaptable to various space constraints and thermal requirements

ParameterTypical RangeMaterial OptionsTube Diameter15-50 mmCarbon SteelFin Height8-25 mmStainless SteelFin Thickness0.3-1.2 mmCopper AlloyFin Pitch2.5-8 mmAluminumOperating Pressure≤4.0 MPaVarious AlloysTemperature Range-50°C to 450°C

Performance Advantages

1. Enhanced Heat Transfer: Fin design increases surface area by 5-10 times compared to bare tubes
2. Pressure Resistance: Maintains structural stability under high-pressure conditions
3. Corrosion Protection: Optional galvanized or special alloy coatings available
4. Thermal Efficiency: Achieves 25-40% higher heat exchange rates than conventional designs

Industrial Applications

U bend fin tubes serve critical functions across multiple sectors:

Energy Sector

• Boiler economizers
• Steam generation systems
• Waste heat recovery units

Process Industries

• Petrochemical reactors
• Refinery heat exchangers
• Distillation column reboilers

HVAC Systems

• Industrial chillers
• District heating networks
• Commercial air handling units

Maintenance Considerations

Proper care ensures long-term performance:

• Regular fin surface cleaning (6-12 month intervals)
• Inspection for mechanical damage
• Monitoring of pressure drop across tubes
• Verification of weld integrity

The continued development of U bend fin tube technology promises further improvements in energy efficiency and operational reliability for thermal systems worldwide.
